A console powers on, the controller connects, and you may even hear menu sounds - but the TV stays black or reports “No Signal.” This console HDMI repair example shows why that symptom should not automatically be blamed on the HDMI port, even though the port is often the problem.

A damaged port is a common repair on PS5, Xbox Series X, PS4, Xbox One, Nintendo Switch, and older systems. It is also one of the repairs where guessing can cost more than it saves. A bent pin, lifted pad, damaged HDMI encoder, bad cable, or TV setting can all create similar symptoms. The repair starts with proper testing, not immediately heating up the board.

Console HDMI Repair Example: A No-Signal PS5

In this example, a PS5 came in after the HDMI cable had been pulled sideways while the console was still connected to the TV. The customer could turn the system on, hear it boot, and use the controller, but there was no picture on two different displays. They had already tested another cable, so the cable was unlikely to be the issue.

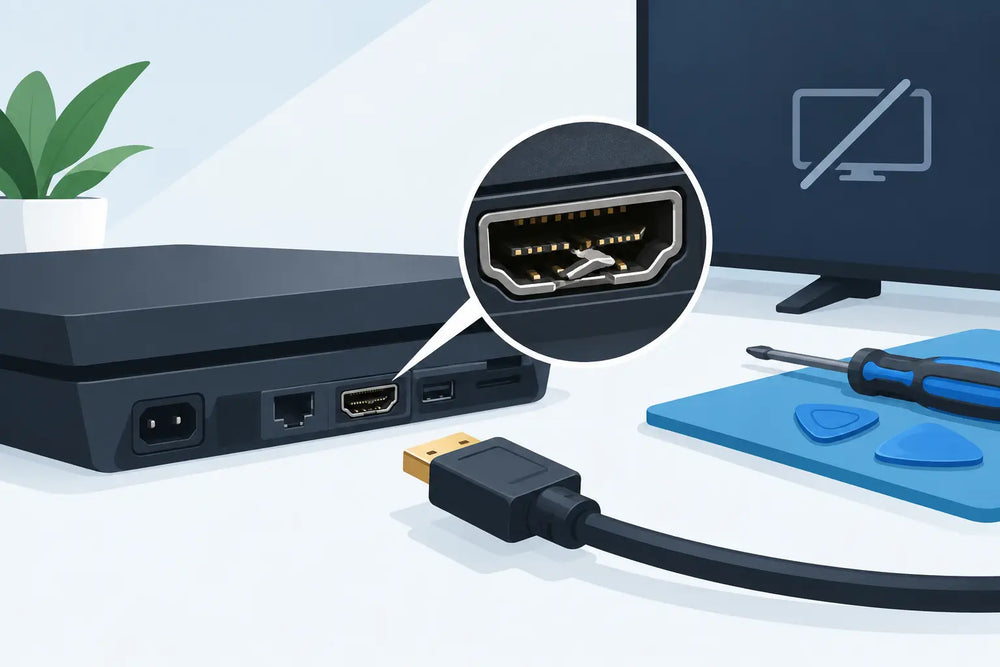

A close inspection of the HDMI port showed the likely cause. The opening was slightly distorted, and the internal pin row did not sit evenly. One or more pins had been pushed out of position. HDMI pins carry high-speed video and control signals, so a tiny amount of damage can be enough to stop the console from establishing a connection with the display.

That visible damage made port replacement the right next step. Still, it did not guarantee the port was the only damaged component. A hard pull can damage the pads that connect the port to the motherboard, and in some cases it can affect nearby filters, diodes, or the HDMI encoder circuit.

First, Rule Out the Easy Failures

Before calling a port bad, a repair shop should test the simple things. HDMI cables fail more often than people expect, especially cables that have been tightly bent, pinched behind furniture, or used for years. A known-good cable is the first check.

The console should also be tested on another display or monitor. Some TVs can get stuck on an input handshake issue, while certain older displays do not cooperate well with specific output settings. Testing a different HDMI input is worthwhile too.

Safe mode can help with consoles that are outputting a resolution or refresh rate the display does not accept. On systems where safe mode is accessible, changing video output settings may bring the image back. If the console shows video in safe mode but not in normal startup, the HDMI port may be fine and the issue may be a setting, software problem, or display compatibility problem.

Physical inspection comes next. Warning signs include a loose cable connection, a port that moves when the cable is inserted, bent contacts, a crushed metal shell, or a cable that will only work when held at a particular angle. Do not keep forcing a cable into a damaged port. That can turn a straightforward port replacement into a motherboard trace repair.

What Happens During an HDMI Port Replacement

On a modern console, the HDMI port is soldered directly to the motherboard. Replacing it properly is precision board work, not a simple swap like changing a controller shell.

The console is opened and the motherboard is removed with care. Modern systems contain tight internal layouts, heat shields, thermal pads, ribbon cables, and components that can be damaged if handled carelessly. Once the board is accessible, the damaged HDMI port is inspected under magnification.

The old port is removed using controlled heat and appropriate tools. Heat must be applied evenly enough to release the solder without overheating nearby components or damaging the board. Pulling a port before every solder joint has released can rip pads from the motherboard. Those pads are small, and repairing them adds time and complexity.

After removal, the board pads are cleaned and inspected. In the PS5 example, the pads were intact, which was good news. If a pad is missing, a technician may need to rebuild the connection with a jumper wire or repair damaged traces. That type of repair is possible in many cases, but it depends on the exact location and extent of the damage.

A replacement HDMI port is then aligned and soldered in place. Alignment matters. A port can look installed from the outside while one or more pins have a poor connection underneath. Each pin needs to be checked for proper solder joints and for accidental bridges between neighboring pins.

Why a New Port Does Not Always Fix the Console

This is where an honest diagnosis matters. A damaged HDMI port is visible and familiar, but it is not the only source of no-video problems.

If the port looks clean and secure, or if port replacement does not restore video, the board needs further testing. Depending on the console, a technician may check power delivery to the HDMI circuit, signal filters, ESD protection components, nearby capacitors, and the HDMI encoder or retimer chip. These components manage and protect the high-speed video signal before it reaches the port.

An HDMI encoder failure can produce a black screen even with a perfect port. Board corrosion from liquid exposure can do the same, sometimes months after the spill. Damage from a power surge, a failed repair attempt, or a console dropped while a cable was connected can also extend beyond the port.

This is why repair pricing can vary. A straightforward port replacement with intact pads is usually more predictable than a board-level signal fault. Good repair work means identifying the actual failure and explaining the condition of the board before promising a result.

Testing After the Repair

After installing the new port, the console is reassembled enough for testing before all shields and screws are put back. The system should be tested with a known-good HDMI cable and a compatible display.

In this repair example, the PS5 produced a stable image after the replacement. The connection was tested by gently moving the cable, switching display inputs, restarting the console, and confirming that video returned consistently. A picture appearing once is not enough. The signal needs to remain stable through restarts and normal cable movement.

For a current-generation console, testing should also confirm the features the system is expected to use. That may include 4K output, HDR, and higher refresh-rate modes when the test display supports them. A repair that only displays at a low resolution may point to a remaining signal issue.

The final inspection checks that the port is seated firmly, the cable inserts normally, and there is no excessive movement. A repaired port should feel secure, not loose or rough.

When DIY Makes Sense and When It Does Not

Cleaning lint from the outside of an HDMI port with the console fully powered down can be reasonable if the cable will not seat properly. Use a light and inspect carefully. Do not push metal objects into the port, bend pins back with a needle, or spray liquid cleaner into the console.

Replacing the full HDMI port is different. It requires board-level soldering equipment, magnification, controlled heat, quality replacement parts, and the ability to test small components if the new port does not solve the issue. Cheap ports and uncontrolled heat can create a bigger repair than the original damage.

If your console works only when the cable is held in a certain position, stop using it that way. If it shows no signal on multiple TVs with multiple known-good cables, or if the port is visibly bent, bring it in before the damage spreads. For gamers in Prince George, Game Quest can inspect the console, confirm whether the port is the real problem, and handle the repair path that makes sense for the system.

Treat the HDMI connection like a vulnerable part of the console, not a handle for moving it. Give the cable enough slack, avoid sharp bends behind the entertainment center, and disconnect it before transporting the system. That small habit can prevent a black-screen problem from interrupting the next game night.
